SPEEDTECH N54 NO TURBO RECIRCULATING WASTEGATE BOTTOM MOUNT KIT

$2,600.00

TURBO YOU WILL USE WITH KIT
ADD WASTEGATE
MANIFOLD COATING

Description

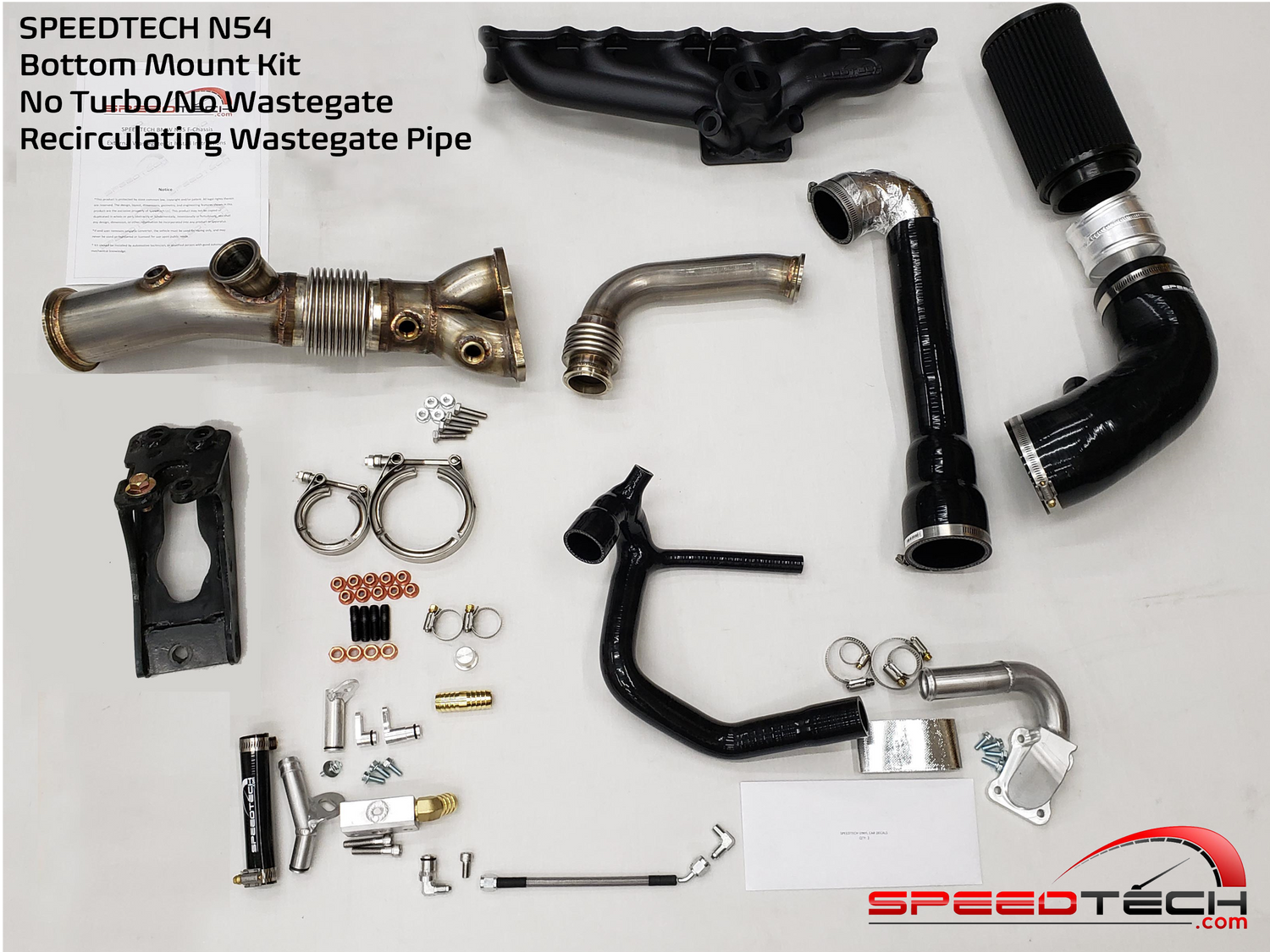

INCLUDED IN THE KIT:

  • T4 Manifold with studs and nuts (Ceramic or Non-Ceramic)

  • Stainless Tubing

  • Recirculating Wastegate Pipe

  • RH Engine Mount Bracket

  • Coolant Block Manifold

  • Silicone Coolant Hose

  • Billet Oil Fittings (to engine)

  • Oil Feed Hose (Stainless Braided)

  • Billet Coolant fittings (to engine)

  • Silicone Turbo Inlet

  • Silicone Turbo Outlet

  • Air Filter

LEAD TIME:
Lead time on a No Turbo Kit is generally 3 to 4 weeks.

BORGWARNER NOTES:
Please Note: if you are sourcing your own BorgWarner SXE turbo, the turbine housing will need the 3" v-band outlet, NOT the standard Marmon flange. The v-band mating face should be roughly on the same plane as the rear surface of the T4 flange. If the v-band position is located differently, you may find alignment issues with the tubing.

GARRETT NOTES:
GTW and G-Series turbos all have mating parts that are specific to each line of turbo, so please be sure to choose the correct option for the turbo you plan to use. GTW oil drain and oil feed will not fit a G-Series and vice-versa.

TURBO NOTES:
Turbine housing has to be a T4 inlet and 3" v-band outlet, and compressor housing has to be a 2" or 2.5" outlet.

Payment & Security

Payment methods

  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Speedtech

SPEEDTECH N54 NO TURBO RECIRCULATING WASTEGATE BOTTOM MOUNT KIT

From $2,600.00

INCLUDED IN THE KIT:

LEAD TIME:
Lead time on a No Turbo Kit is generally 3 to 4 weeks.

BORGWARNER NOTES:
Please Note: if you are sourcing your own BorgWarner SXE turbo, the turbine housing will need the 3" v-band outlet, NOT the standard Marmon flange. The v-band mating face should be roughly on the same plane as the rear surface of the T4 flange. If the v-band position is located differently, you may find alignment issues with the tubing.

GARRETT NOTES:
GTW and G-Series turbos all have mating parts that are specific to each line of turbo, so please be sure to choose the correct option for the turbo you plan to use. GTW oil drain and oil feed will not fit a G-Series and vice-versa.

TURBO NOTES:
Turbine housing has to be a T4 inlet and 3" v-band outlet, and compressor housing has to be a 2" or 2.5" outlet.

TURBO YOU WILL USE WITH KIT

  • PRECISION or PULSAR 6466 or 6766
  • GARRETT GTW WATER COOLED TURBO
  • GARRETT GTW OIL COOLED TURBO
  • BORGWARNER S3xx SX-E
  • BORGWARNER S2xx SX-E
  • G-SERIES G30-770 / G30-900 / G35-900
  • G-SERIES G35-1050

ADD WASTEGATE

  • NO THANKS
  • VS Racing 44mm
  • TiAL MVR
  • TURBOSMART HYPERGATE

MANIFOLD COATING

  • NON-CERAMIC
  • CERAMIC
