N54 Forward Facing Manifold
N54 Forward Facing Manifold - Black / No Charge Pipe / No Fueling Kit is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability

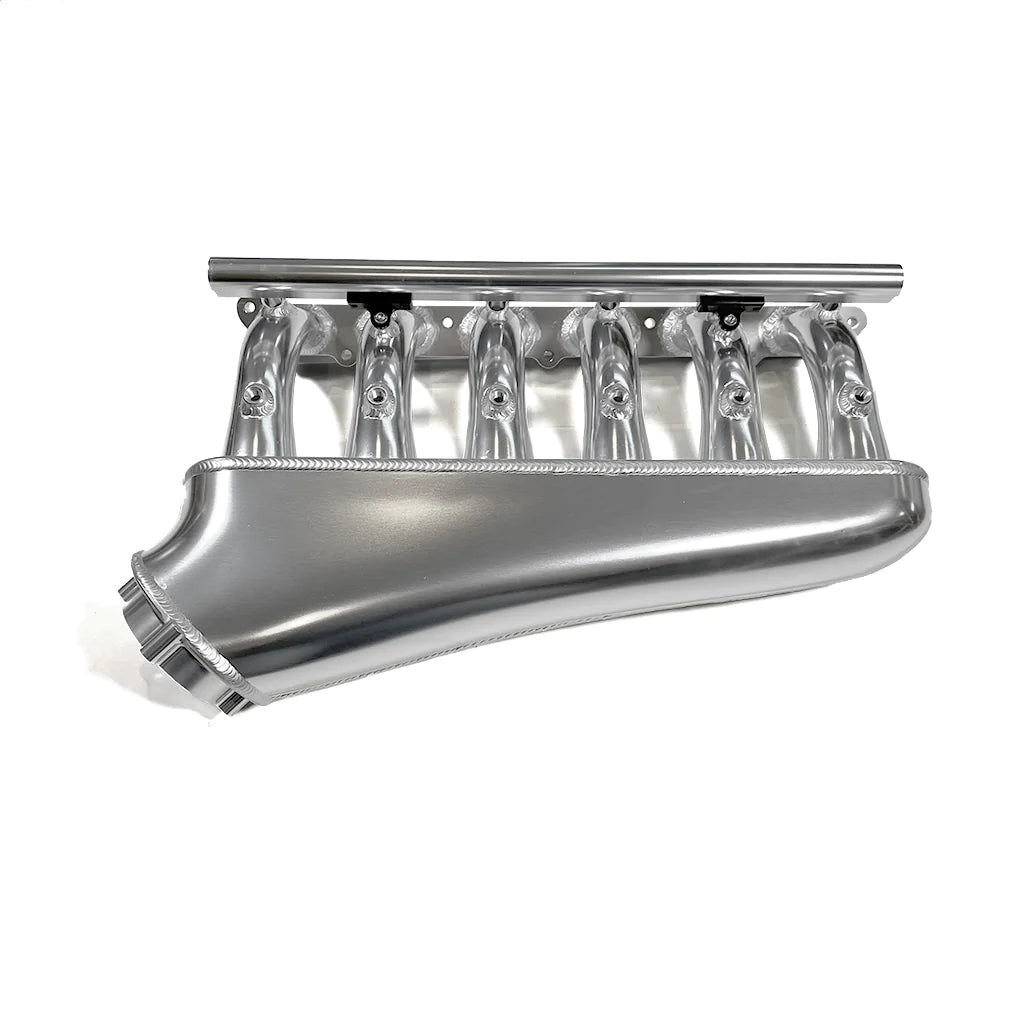

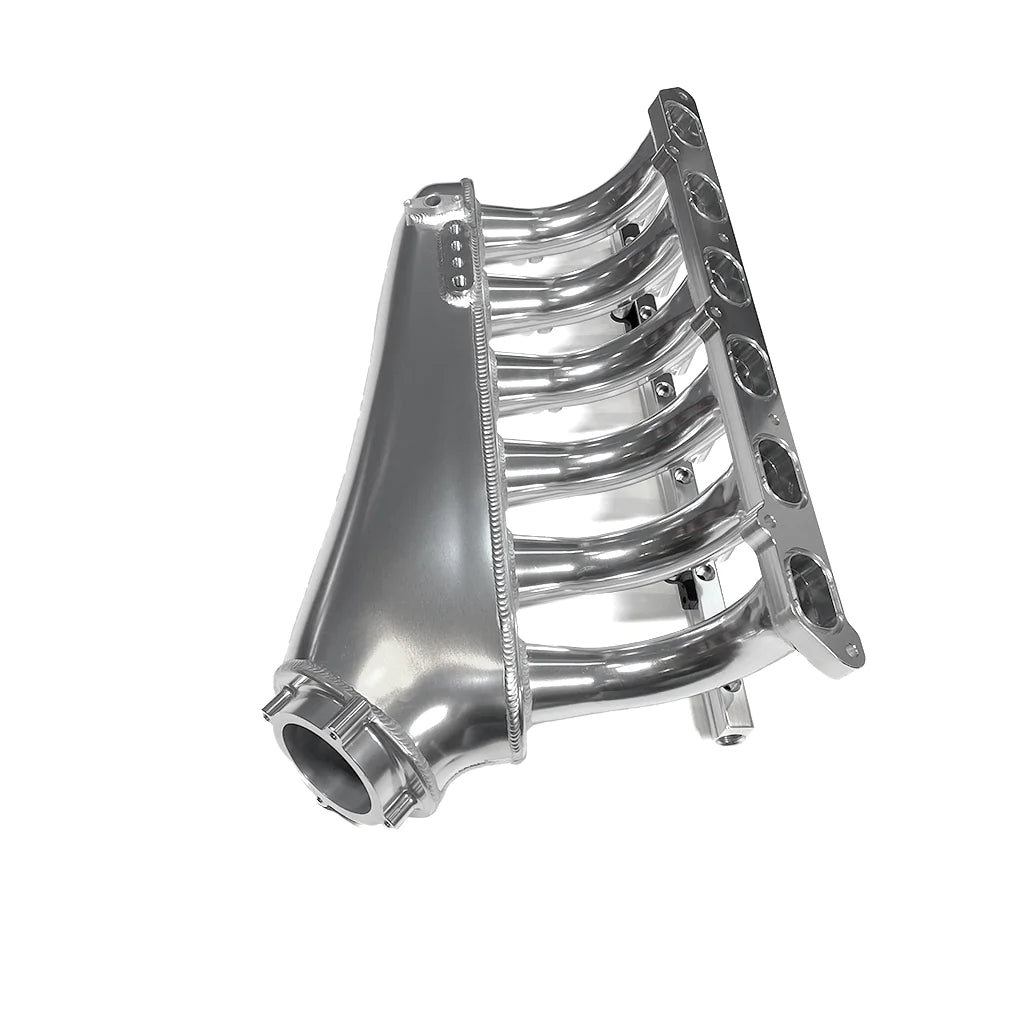

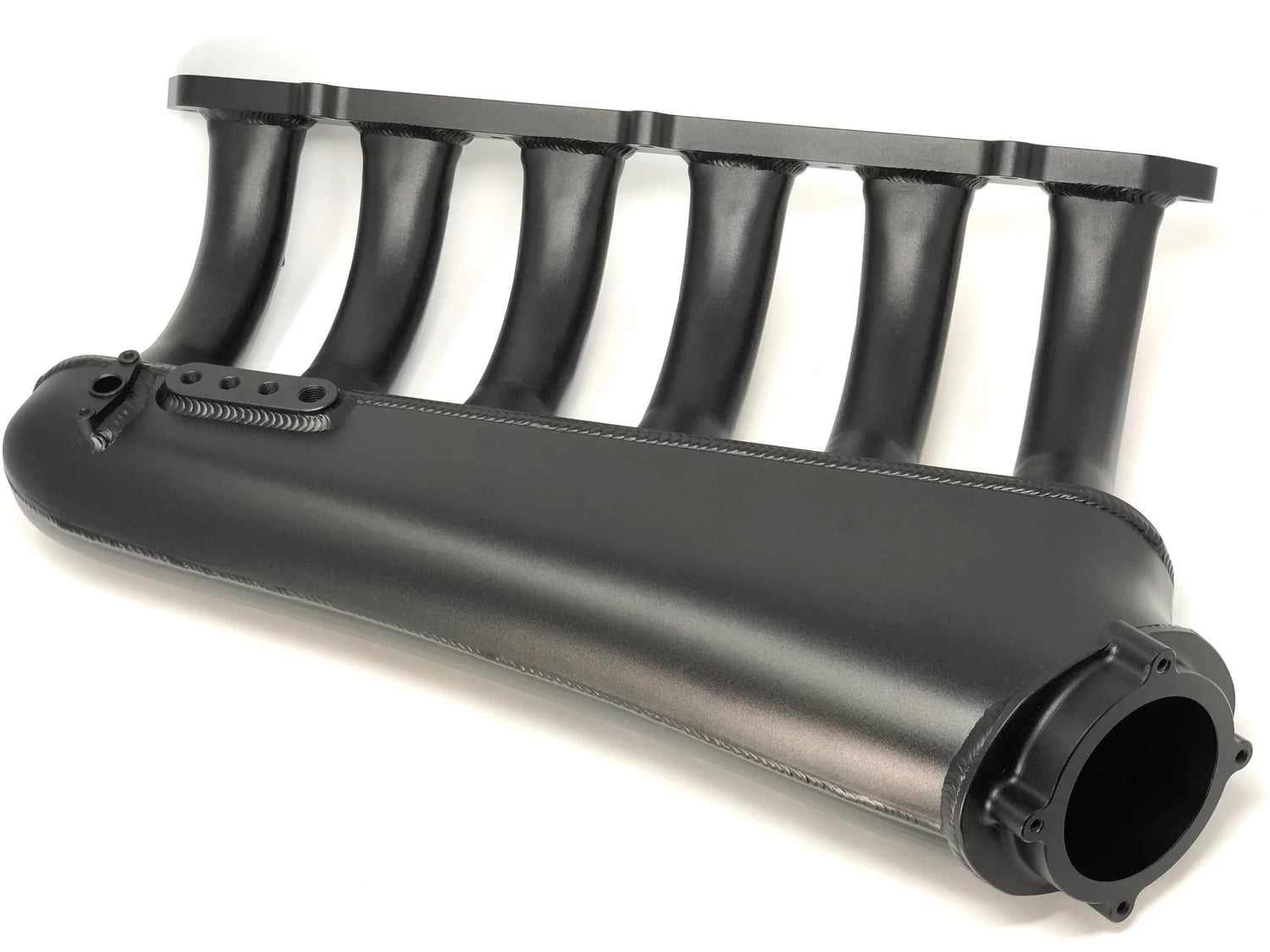

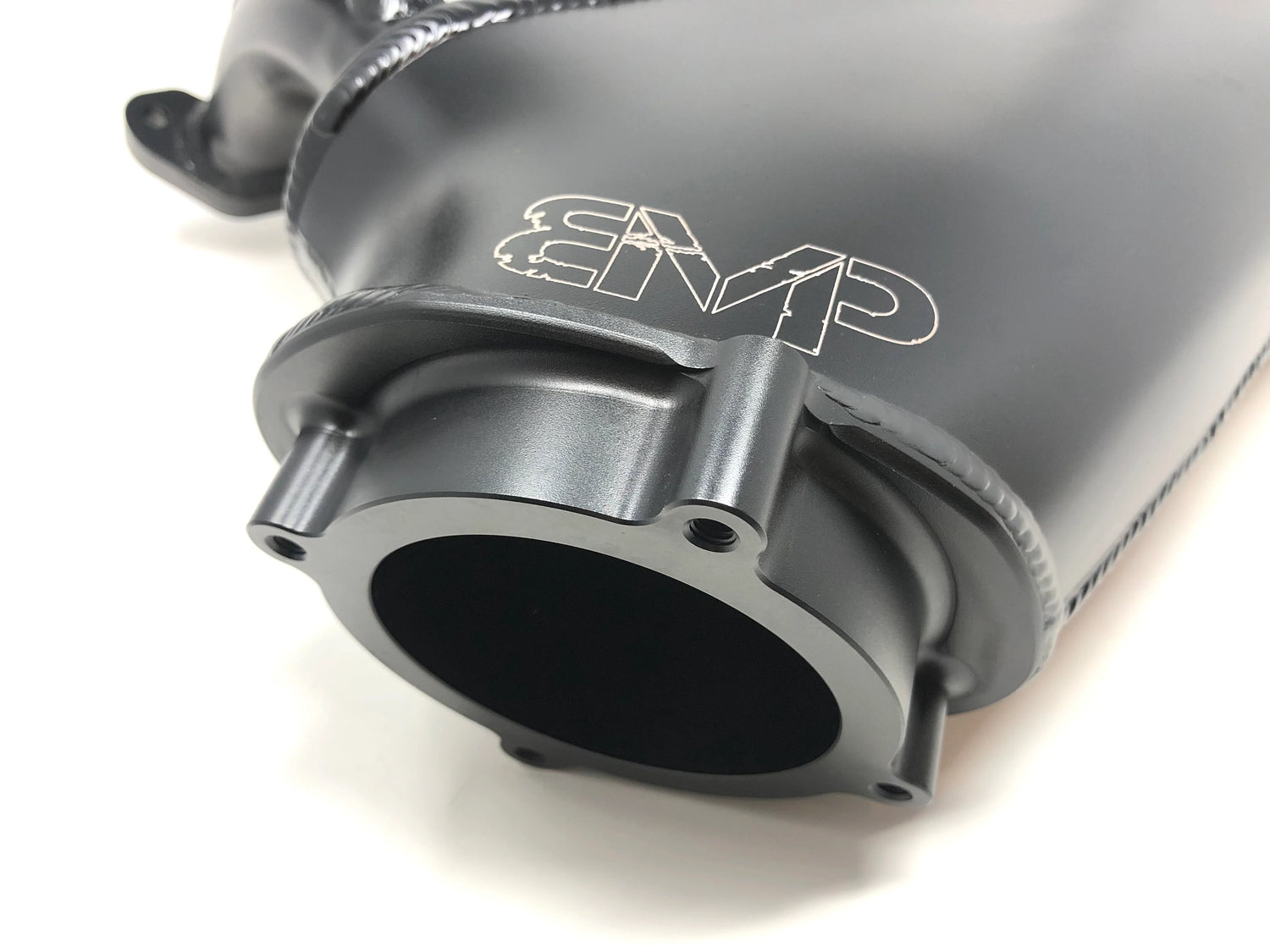

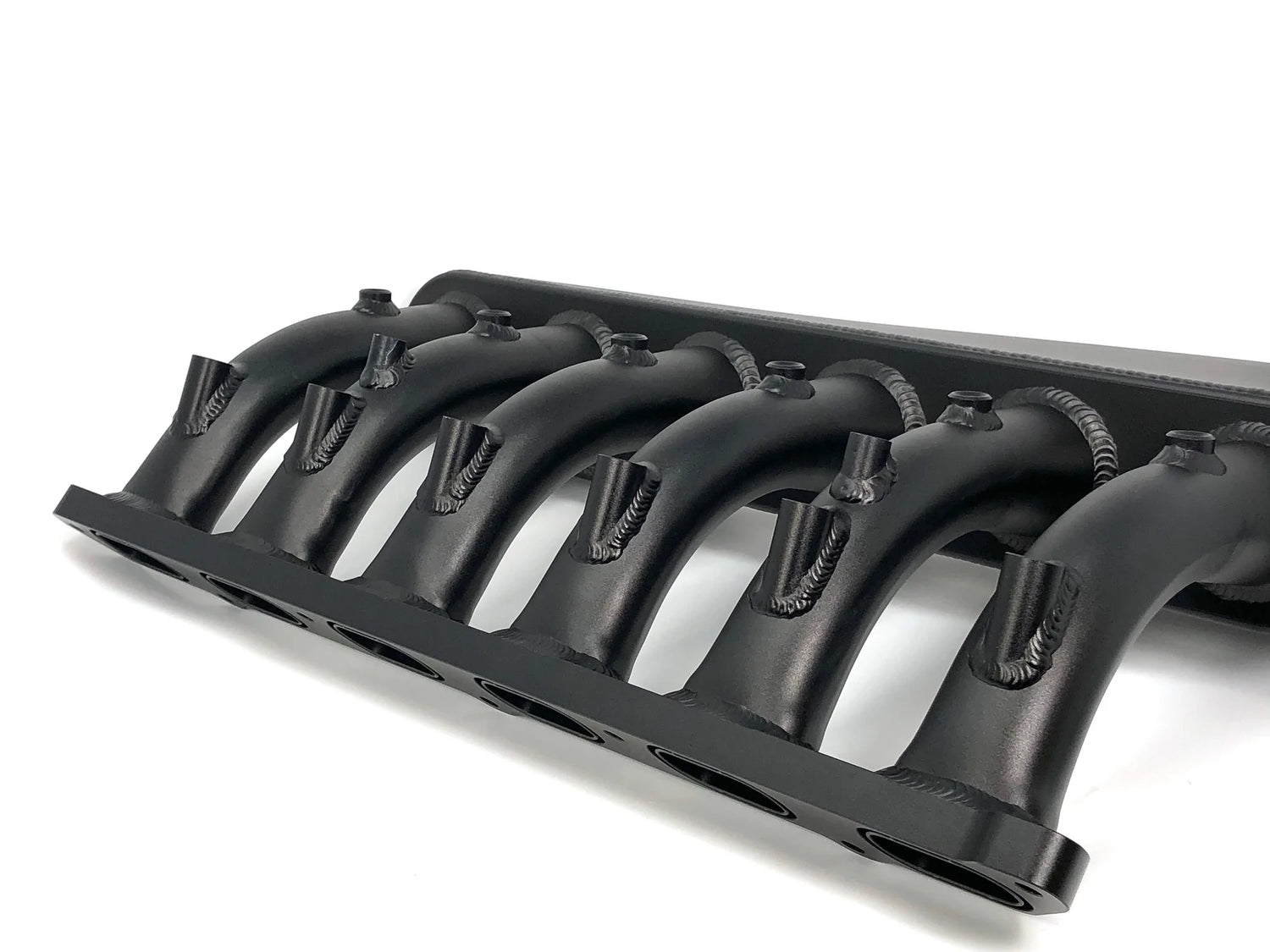

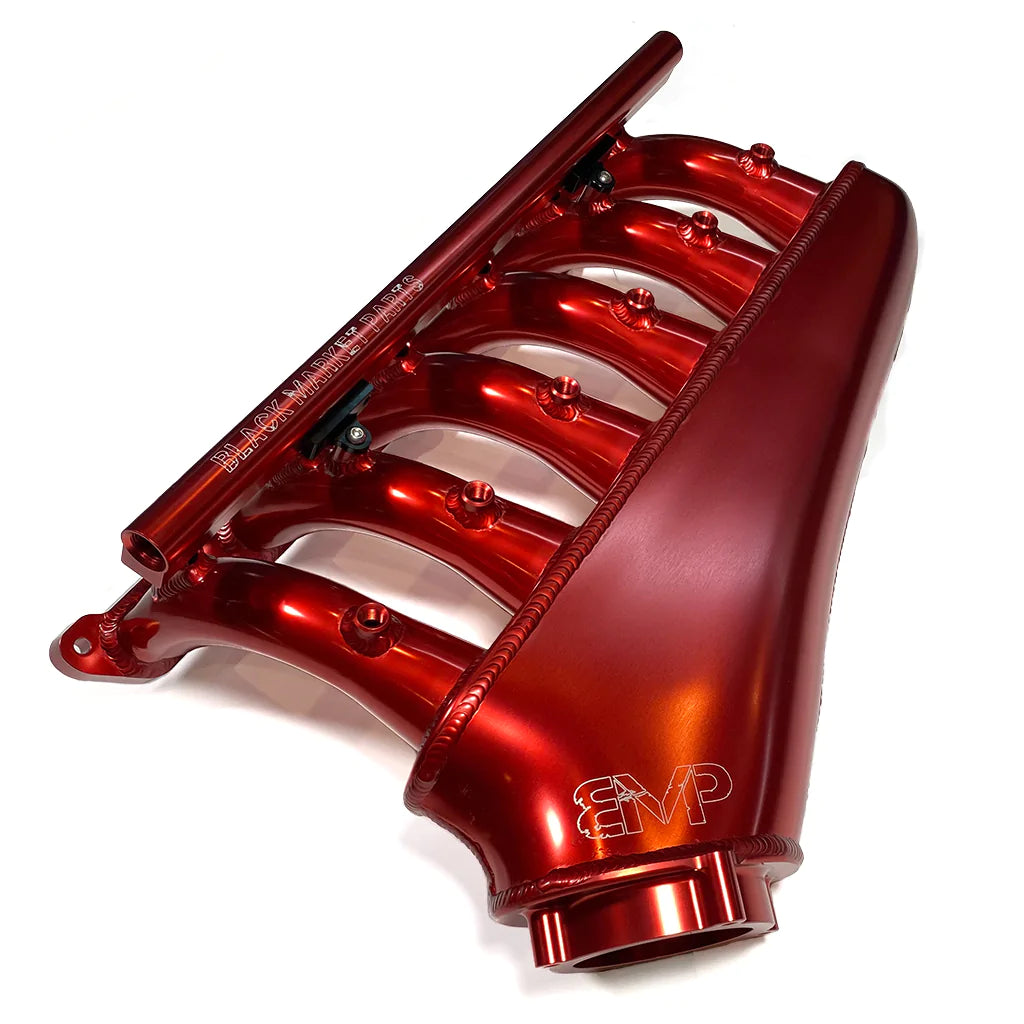

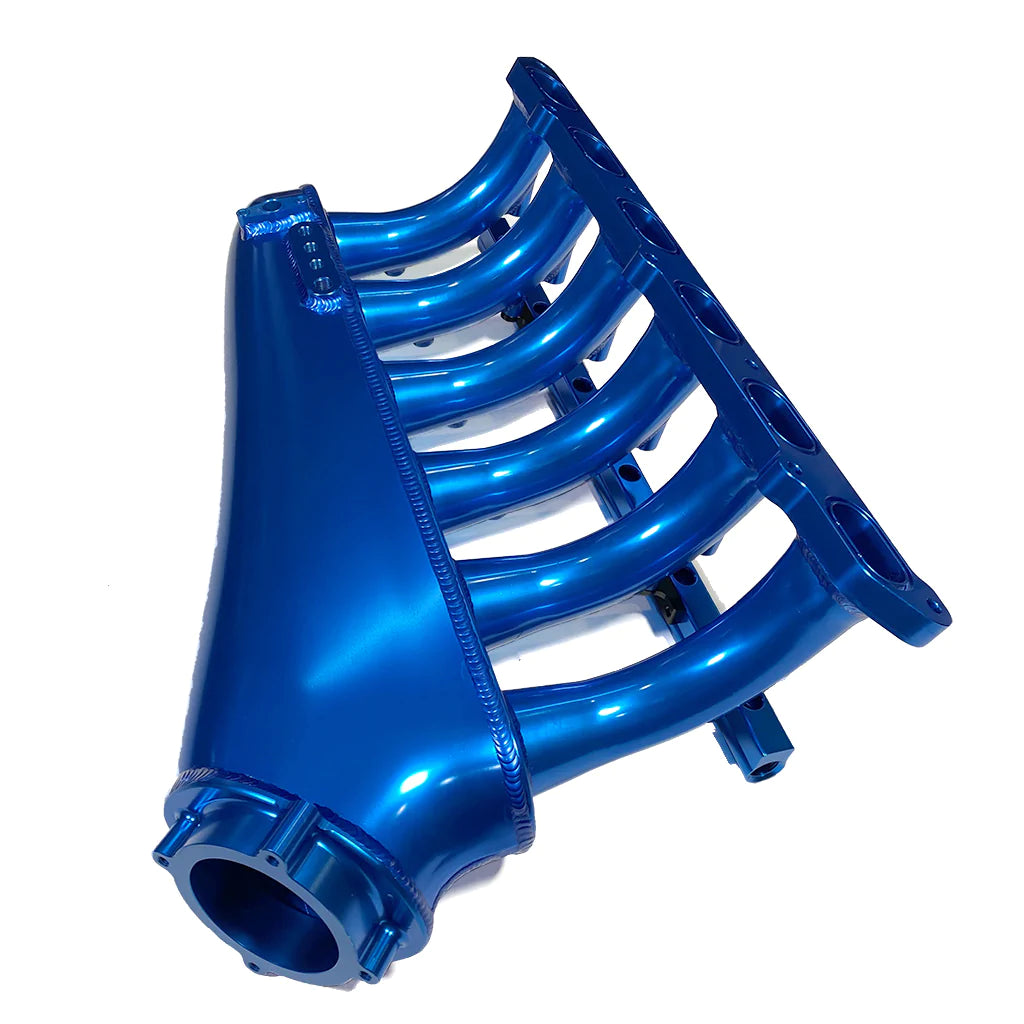

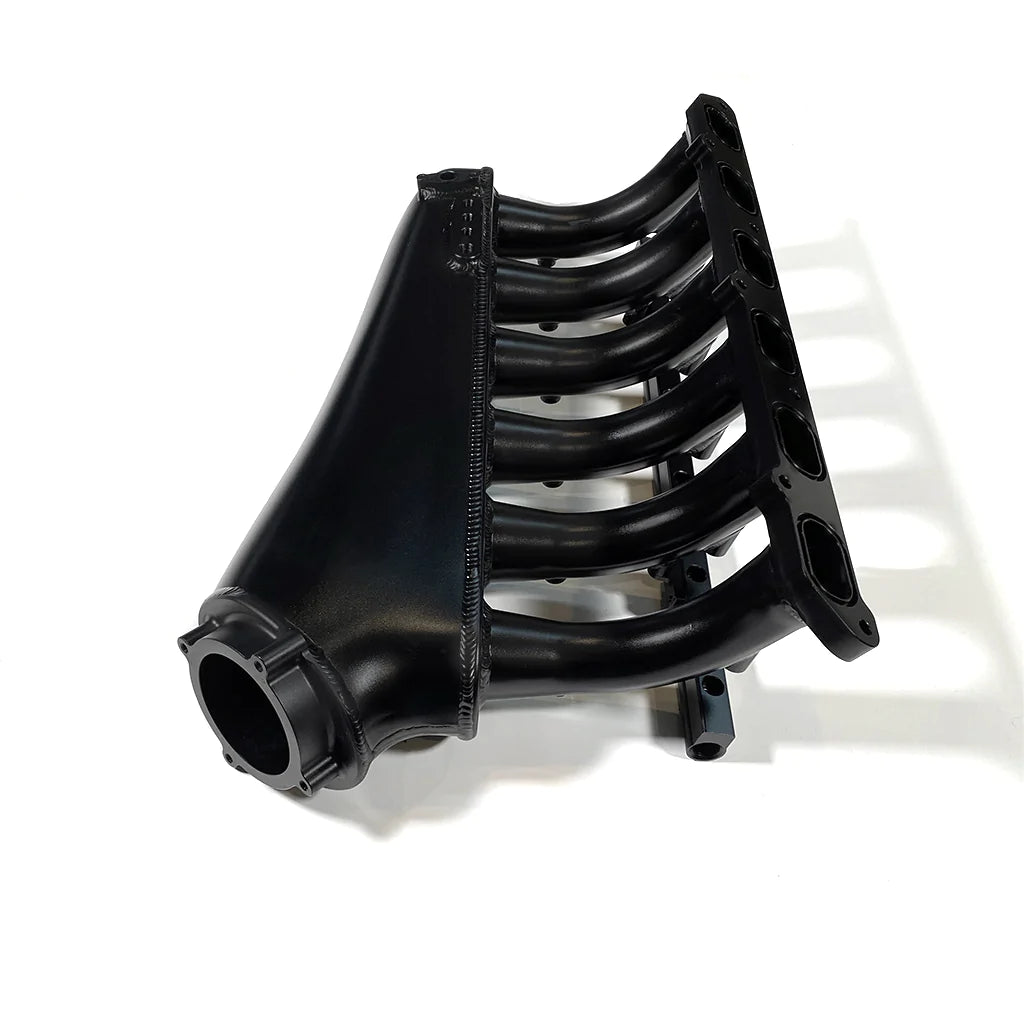

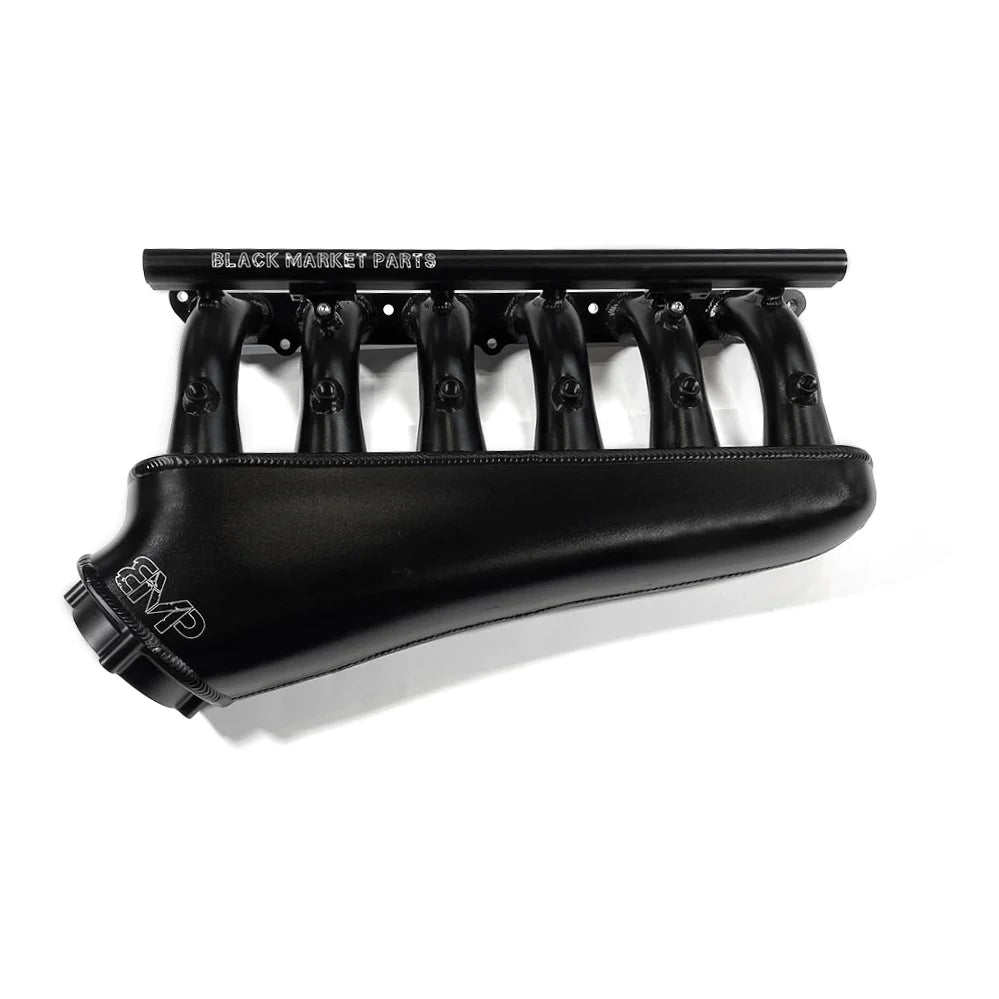

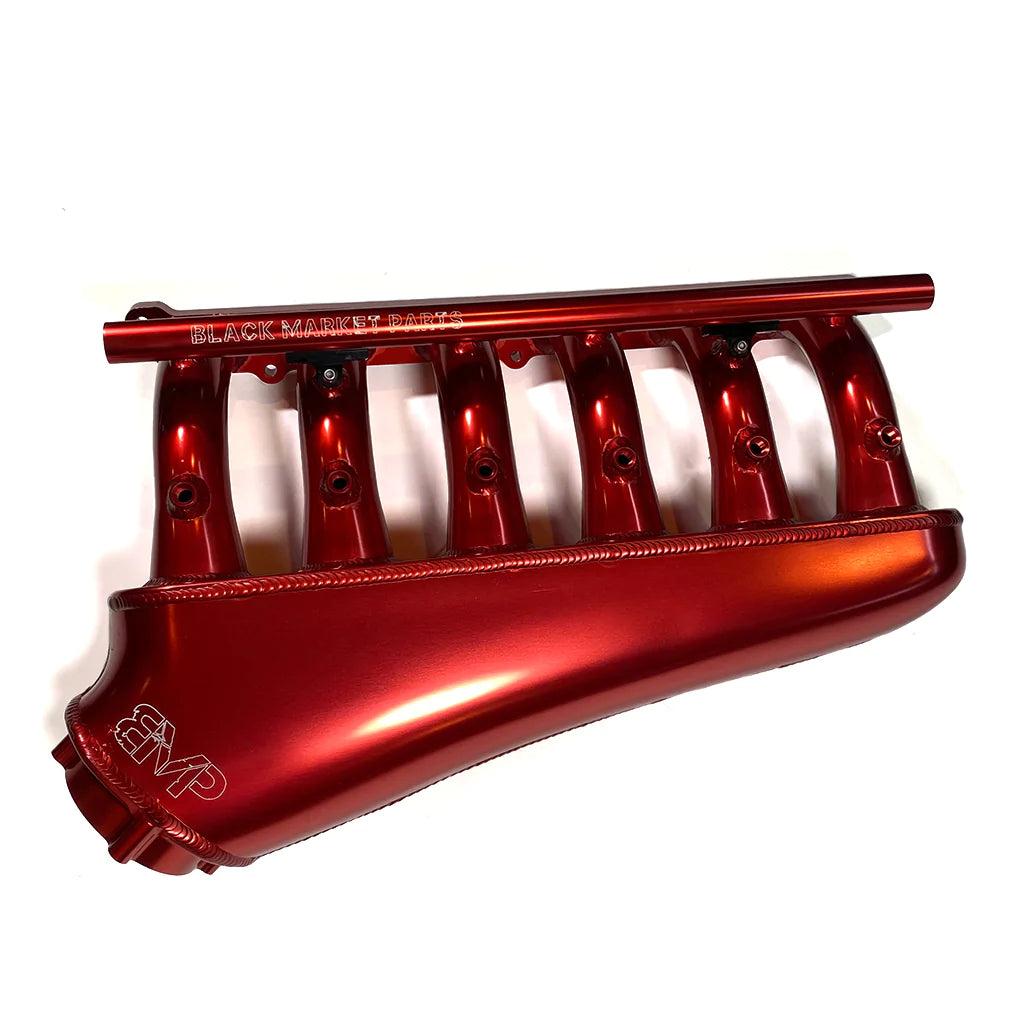

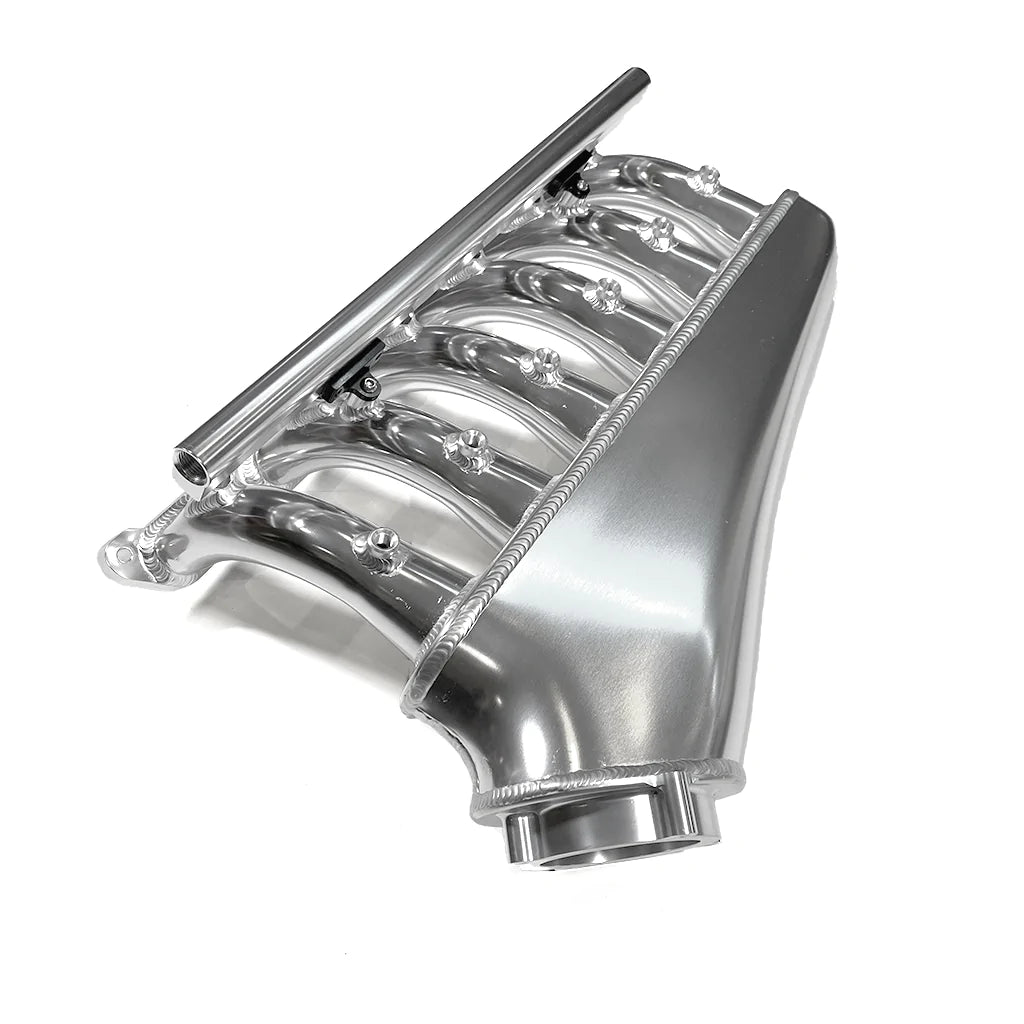

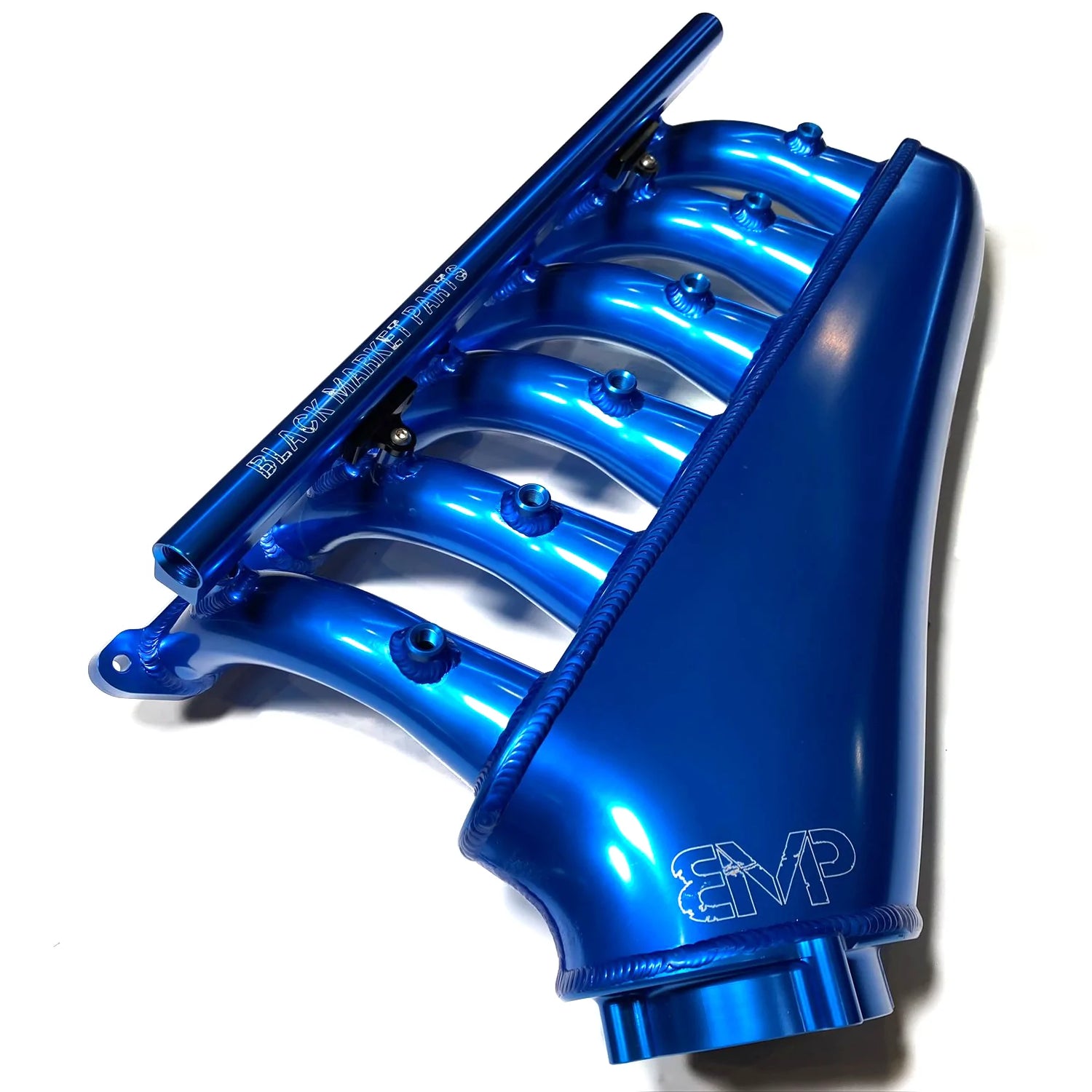

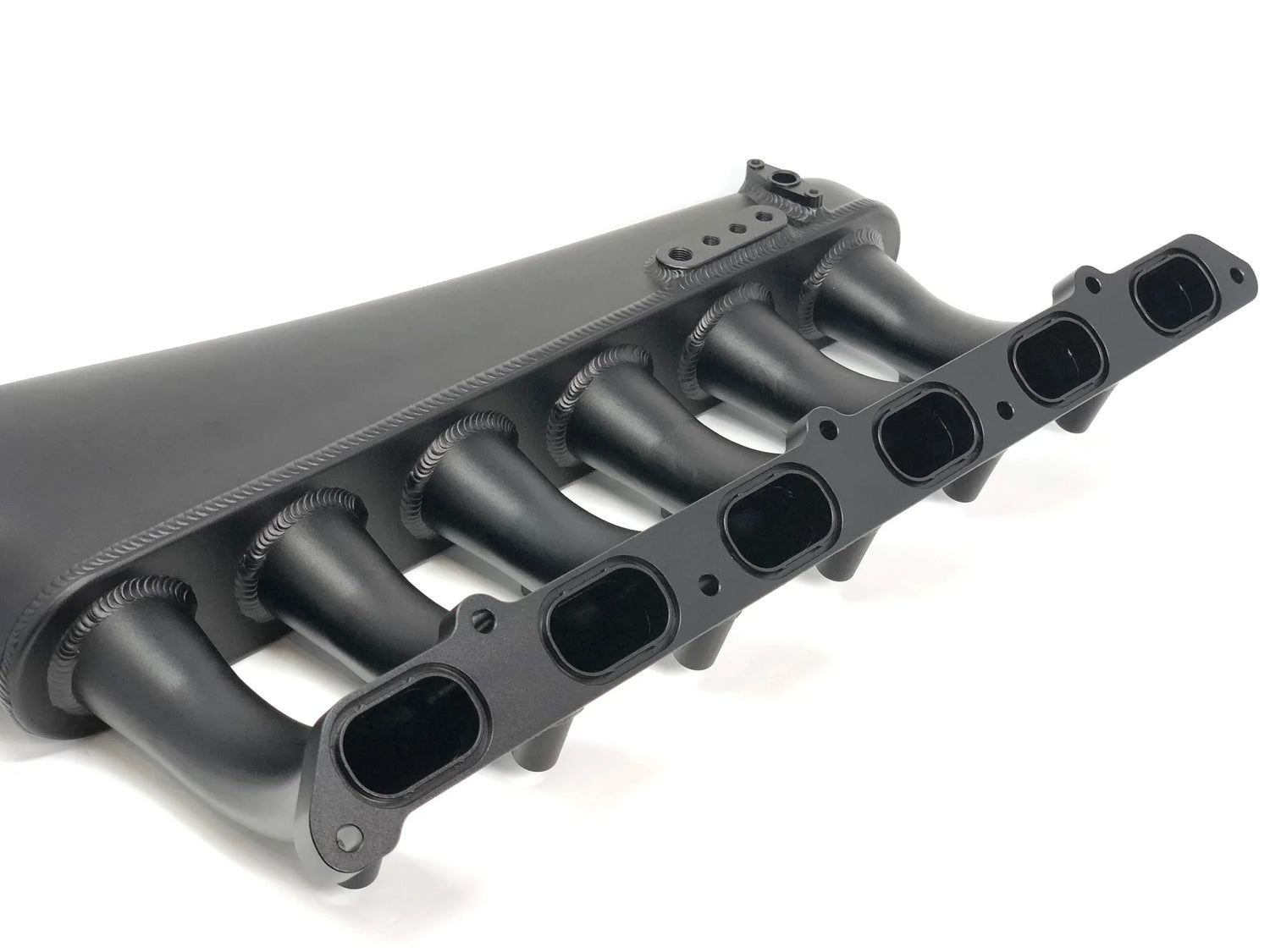

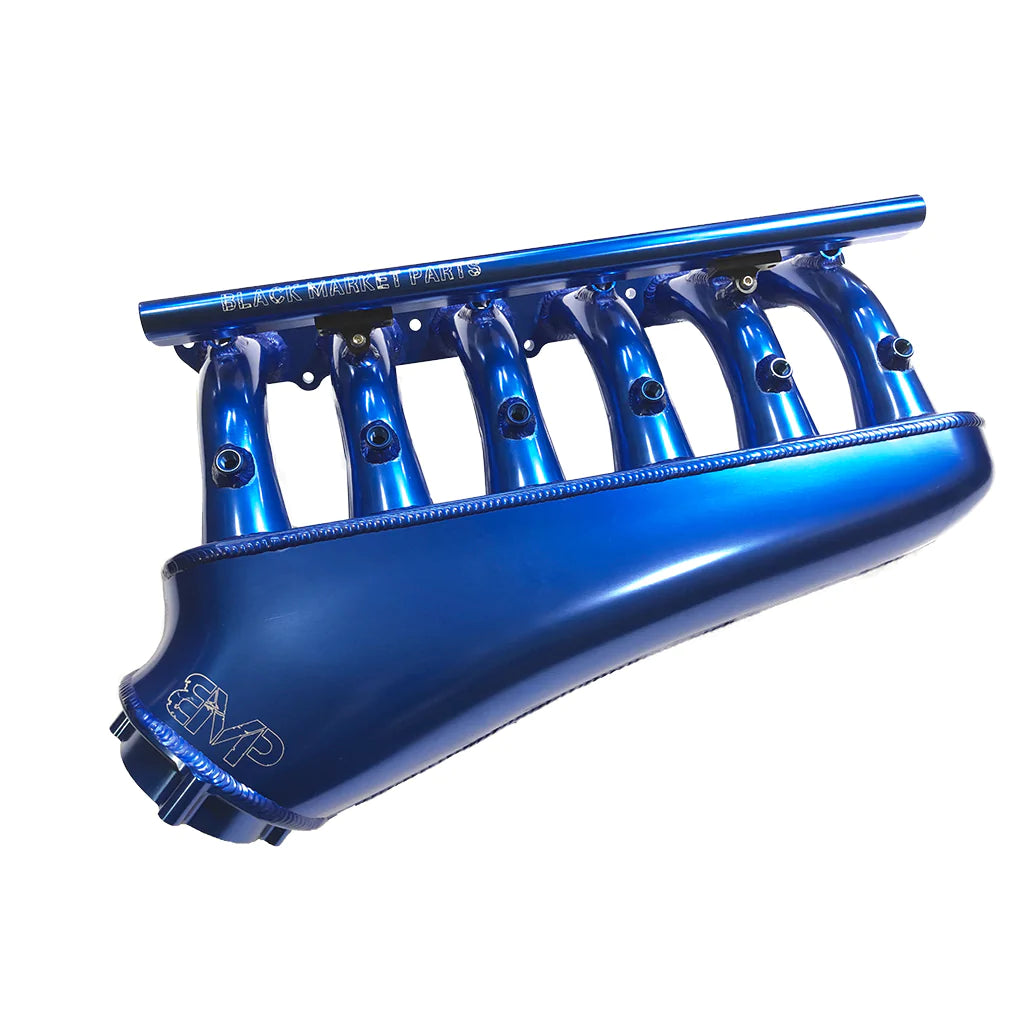

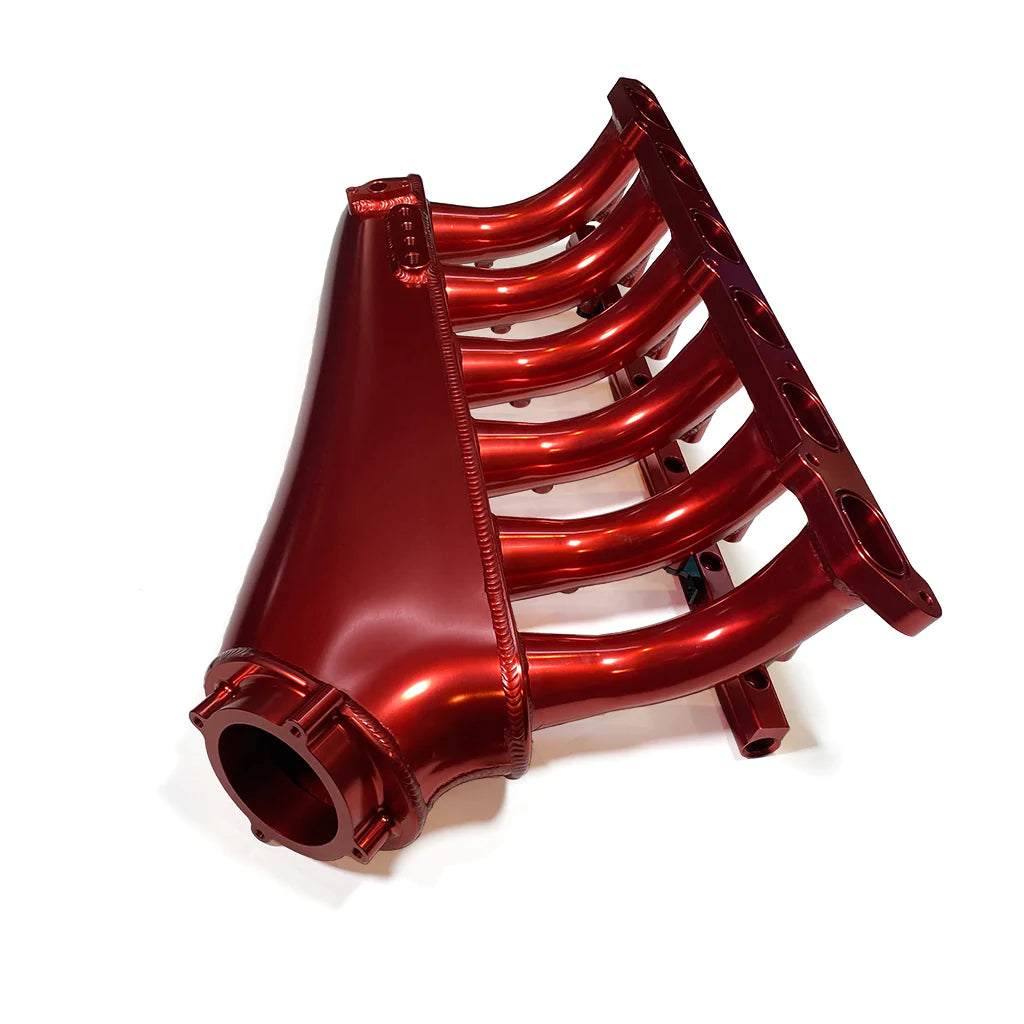

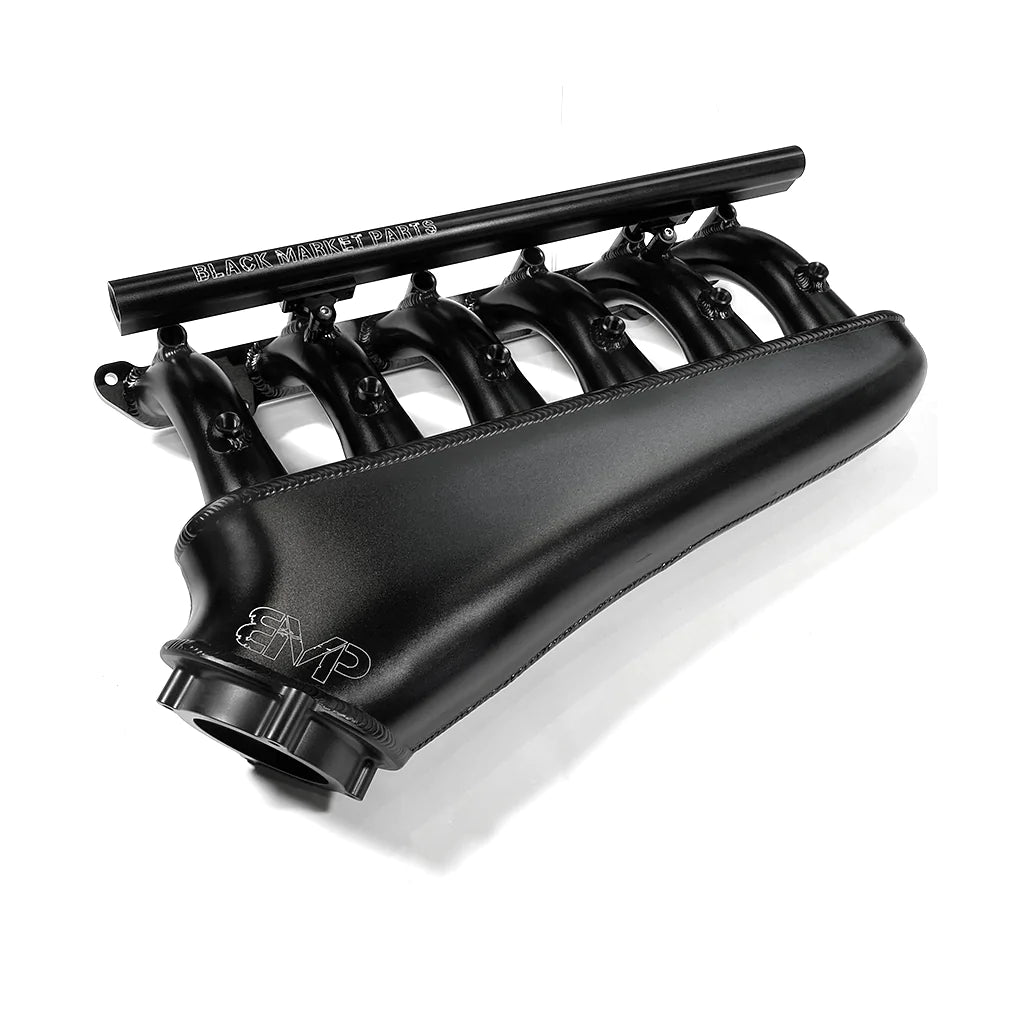

The Black Market Parts N54 PERFORMANCE FORWARD FACING INTAKE MANIFOLD is designed to work with both 335i and 135i BMW's that came with N54 engines. This is a perfect way to add reliability while increasing air flow, adding port injection. Best of all our kit comes with ports to add direct port meth or direct port nitrous!
Features & Benefits
- Increased Airflow
- Center flow port injection (fits all brand injectors)
- Stronger than stock plastic manifold
- Multiple expansion ports for larger BOV line, Boost Gauge, etc

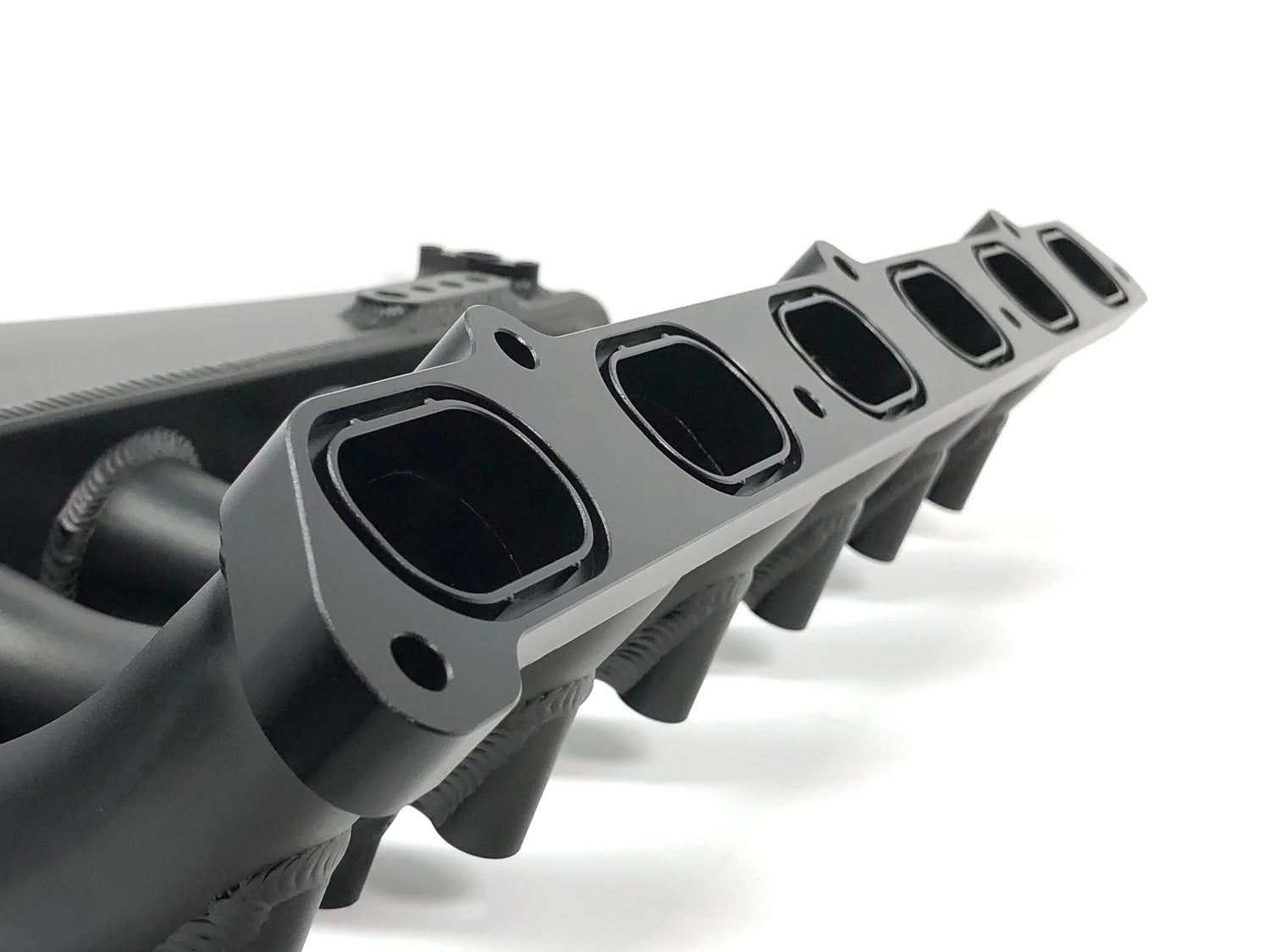

- Proprietary machining allows our manifold to use OEM o-rings (included)
- Less heat soak than most other aftermarket aluminum manifolds means proven lower IAT's
Required Fueling option(s)
- Pack of 6 Genuine Bosch Motorsports injectors
- Flow matched to the highest standards (certs included)
- Full stainless wetted internals for corrosion resistance
- Individually serialized for full injector flow and resistance report (included)
- 750cc at 3bar , 900cc at 4bar , 1050cc at 5 bar (advertised at 750cc by industry standards)
Performance Fuel Line
- Features Aeroquip AN6 Socketless fuel hose
- All fittings CNC machined from 6061 aluminum
- Anodized finish to withstand all fuel types (including e85)
- Female fitting features dual seals to ensure a zero leak connection to HPFP
Relocated inlets or Single Turbo
The use of this manifold requires the extension of two harnesses
- The T-Map sensor - We offer the 3.5 Bar t-map extension harness for this purpose.
- Throttle Body harness - There are no extension harnesses for this, you must cut and splice in additional wire to extend this harness.
This high quality solution is direct plug and play replacement for the factory intake manifold on all N54 cars. With the OEM like fitment and the ability to run any fuel or combination of fuels the BMP intake manifold is the right solution for all build levels!
For more details see the specifications tab
Weight: 14.8 lbs (without injectors or fuel line)
Construction: Die formed sheet metal & billet CNC
Injector Compatibility: Compatible with all injectors for port injection

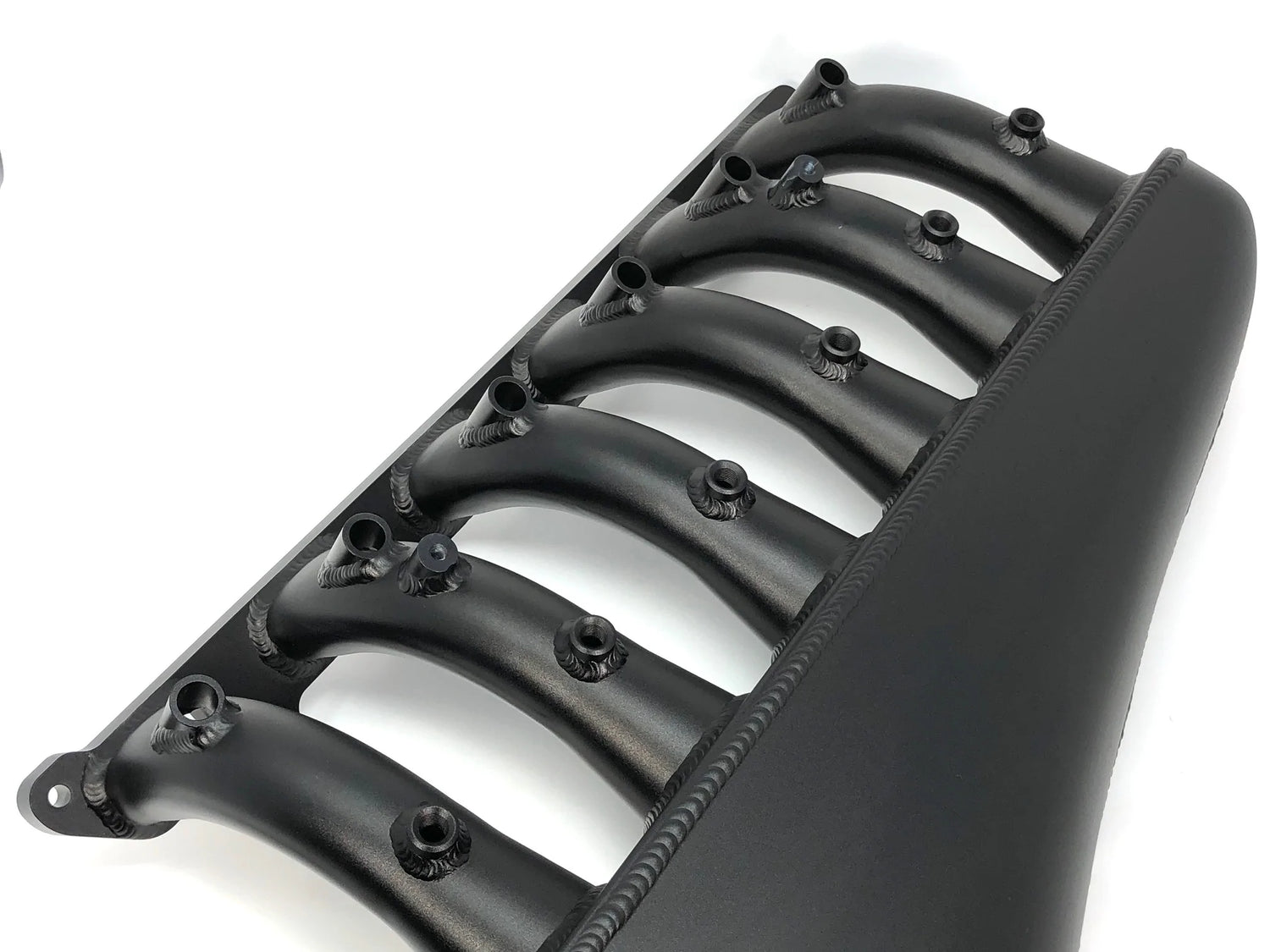

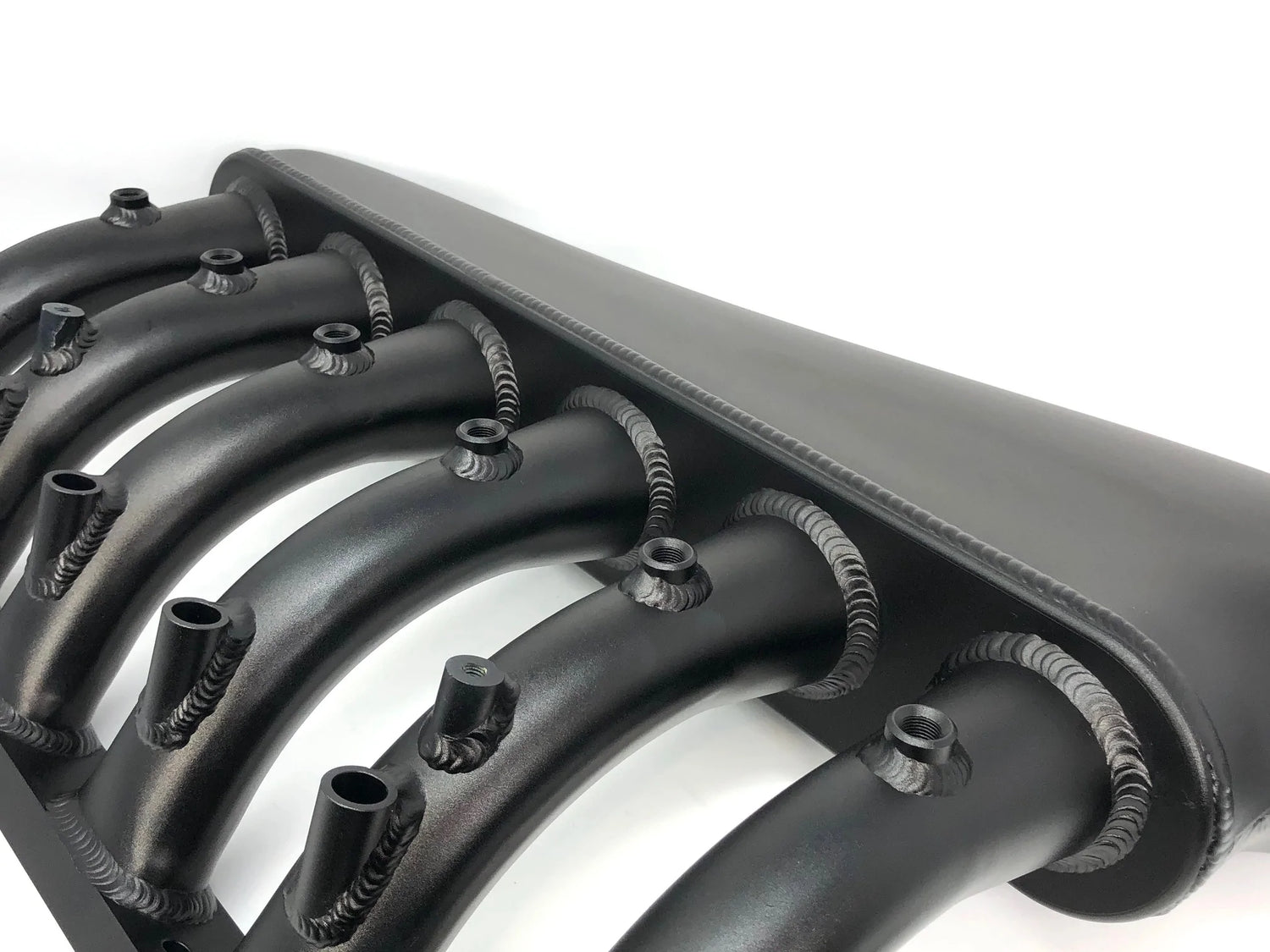

Meth/Nitrous Ports: Features capability of 6 direct port meth or nitrous ports (1/8" NPT)

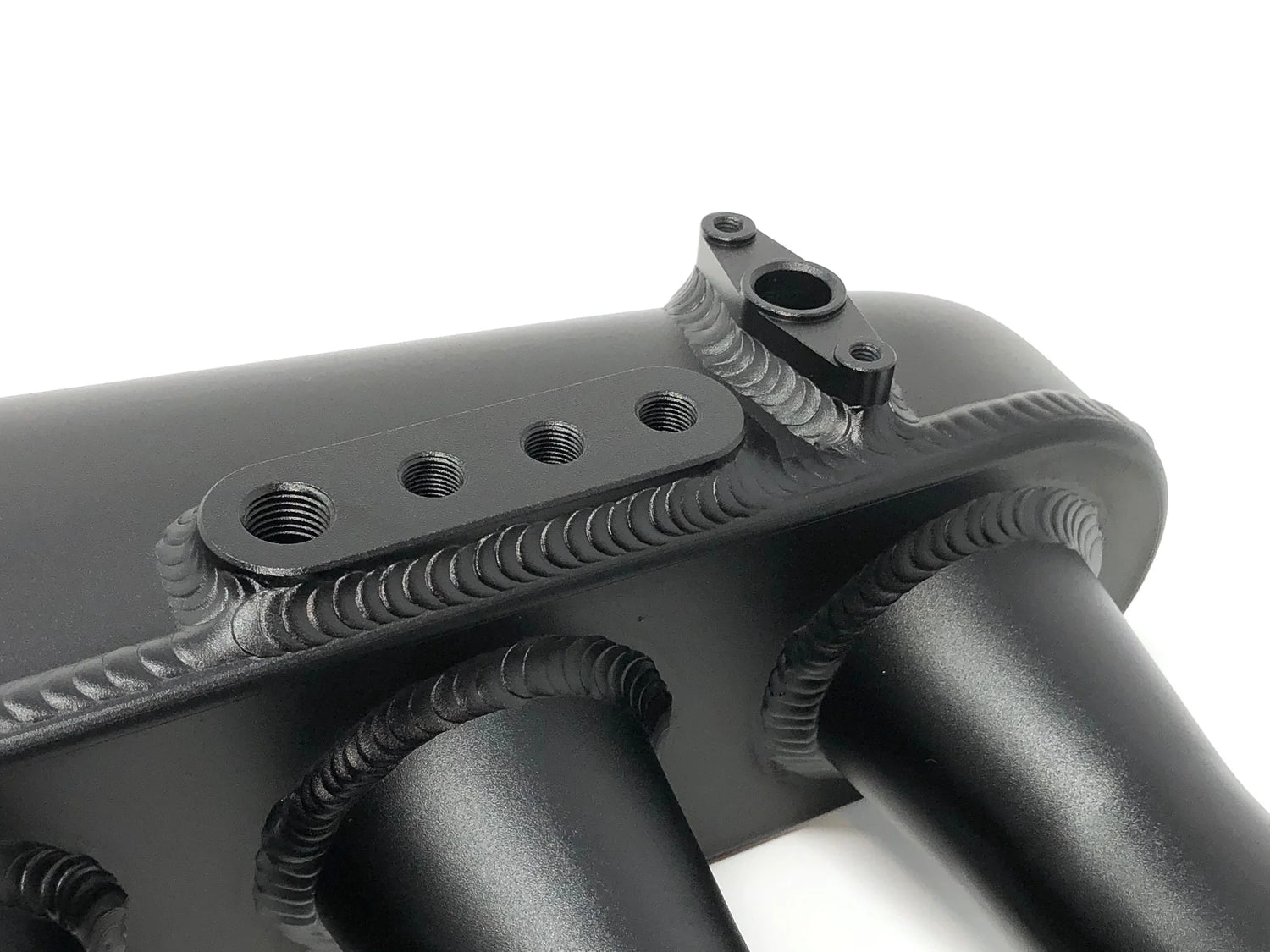

Expansion Ports: Features 4 optional ports for use with BOV, Boost Gauge, Hobbs Switch, etc.. (if not using ports additional plugs maybe required from local hardware store)
Optional Fuel Injectors: (see full product information here)
Optional Fuel Line: (see full product information here)
